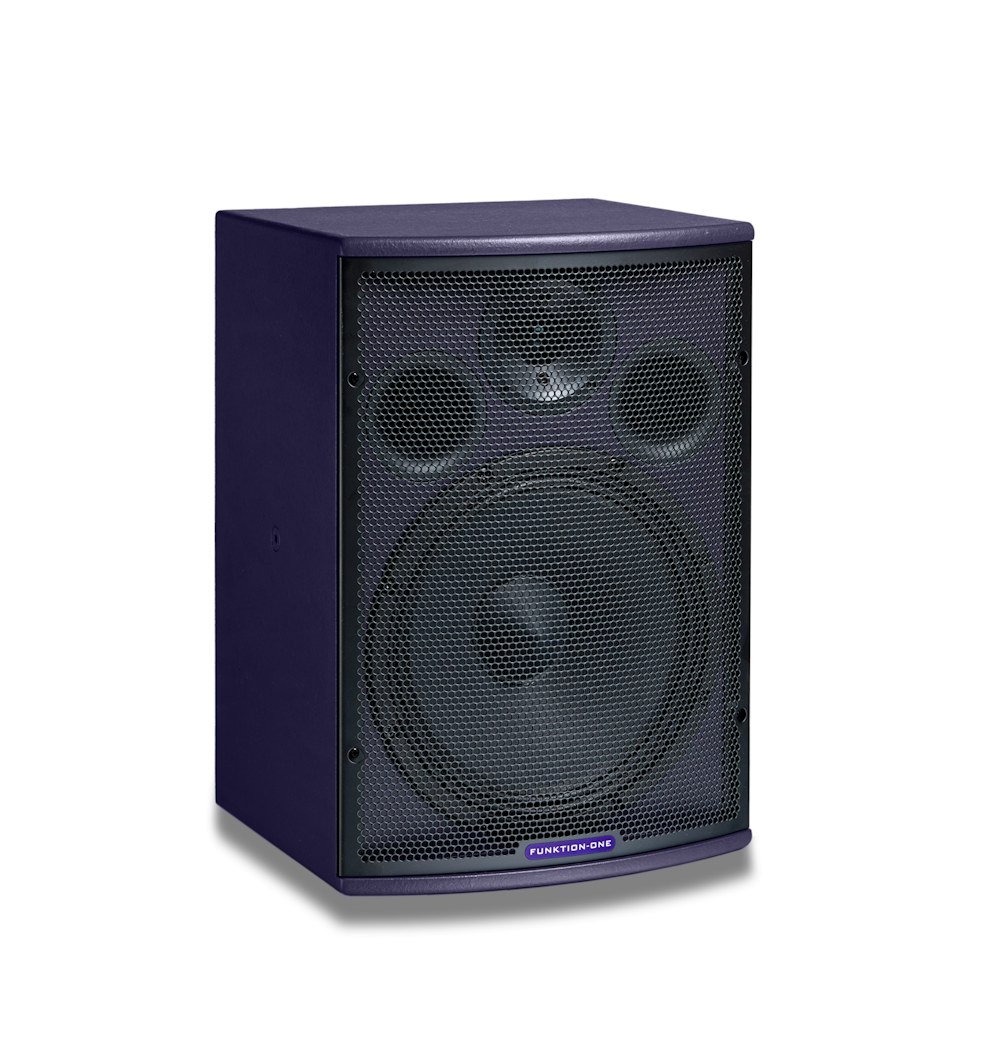

Funktion-One F101.2
Exceptional Tuning and Driver Optimisation
F101.2 features Funktion-One's unique sound quality and purity of design in a compact format.
Download Archive
Funktion-One performance from a compact loudspeaker
F101.2 provides Funktion-One’s renowned sonic performance in a compact and useful form factor. This, along with its outstanding acoustic efficiency, makes F101.2 a highly versatile and cost effective solution for applications including domestic listening, studio monitoring, retail, bars, restaurants and galleries as well as being a handy ‘go to’ for the rental user. Flared bass reflex ports minimise turbulence and maximise our refined cabinet tuning. A high resolution 1” HF device and Funktion-One designed waveguide delivers precise high frequencies to 20kHz. F101.2 benefits from our minimalist approach to passive crossover design, achieving very low distortion and excellent integration between drivers, to give a stable and engaging image. NL4 and Phoenix connector variants are combined into a common connector panel, simplifying purchasing and inventory management. Combine with SB212 or BR115 for compact full range use.
Performance
- High sensitivity/electroacoustic energy efficiency
- Minimalist passive crossover design for maximum resolution
- Integral pole mount
- Dual NL4 and Phoenix connector combination as standard
- M8 rigging points
- Weather resistant IP55 version available
Specification
- Driver
- 10" + 1"
- Operating Band
- 100Hz - 20kHz
- Bandwidth (-3dB)
- 100Hz - 20kHz
- Sensitivity 1m
- 100dB at 2.8V
- Power
- 150W
- Nominal Impedance
- 8Ω
- Nominal Dispersion
- 90° x 60°
- Connectors
- 2 x Neutrik NL4 and 1 x Phoenix
- Weight
- 10kg (22lbs)
Documents
- 2D CADDWG
- 3D CADDWG
- Detailed DrawingPDF
- Ease DataGLL
- Specification SheetPDF
- Technical DrawingPDF
- Wall MountPDF
- YokePDF
Documents are hosted by the manufacturer and always reflect the current revision.
