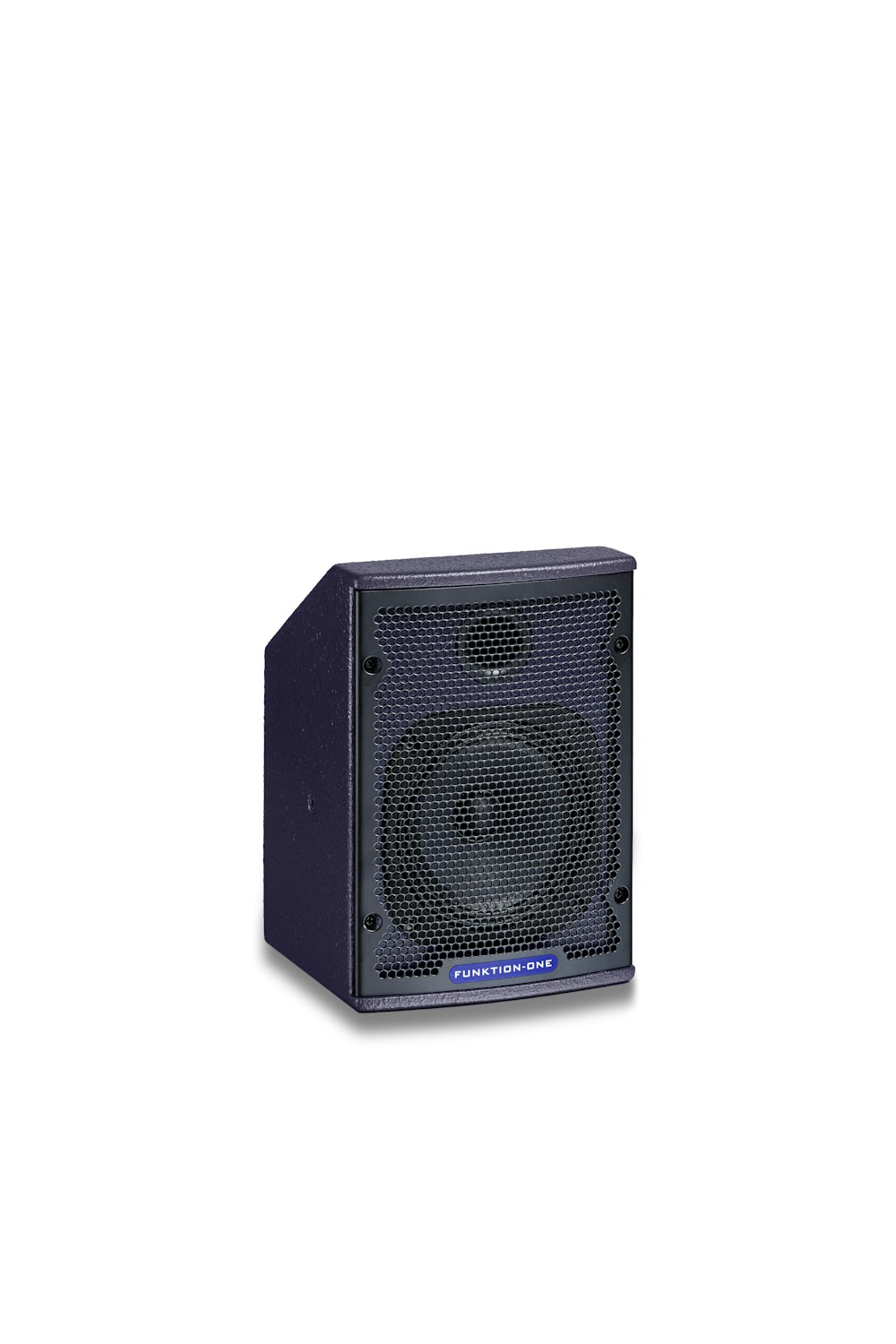

Funktion-One F5.2
Ultra Compact Funktion-One Sound
F5.2 is an ultra compact and extremely balanced loudspeaker, with a natural sound quality not typically found in loudspeakers of its size.
Download Archive
The F5.2 is an ultra compact loudspeaker with Funktion-One's signature audio quality
F5.2 is the smallest loudspeaker in our Compact Range, making it a valuable tool for the AV installer, bringing Funktion-One sound to distributed audio systems in bars, restaurants and retail applications. F5.2 is equally well suited to domestic listening, home theatre, spatial audio and home DJ monitoring applications. A Funktion-One specified high sensitivity 5” delivers excellent coherency and builds an impressive image when used in near field situations. NL4 and Phoenix connector variants are combined into a common connector panel. Pair with SB8 for discreet, high performance installation or choose SB8A for a very compact self powered Funktion-One system. Combination of 2 x F5.2 with 1 x SB8A makes for an outstanding, highly mobile, self-powered small party system.
Performance
- High sensitivity
- Up to 8 units can be connected in parallel
- Dual NL4 and Phoenix connector combination as standard
- Various mounting/rigging options (yoke, wall bracket)
- Optional 70/100V line transformer
- 3/8' microphone stand mount
- Wide bandwidth 5” driver
- Weather resistant, IP55 version available
Specification
- Driver
- 5”
- Operating Band
- 150Hz - 13kHz
- Bandwidth (-3dB)
- 150Hz - 13kHz
- Sensitivity 1m
- 90dB at 4V
- Power
- 30W
- Nominal Impedance
- 16Ω
- Nominal Dispersion
- Conical
- Connectors
- 2 x Neutrik NL4 and 1 x Phoenix
- Weight
- 2.7kg (5.9lbs)
Drawings
Documents
- 2D CADDWG
- 3D CADDWG
- Detailed DrawingPDF
- Specification SheetPDF
- Technical DrawingPDFF
- Wall MountPDF
- YokePDF
Documents are hosted by the manufacturer and always reflect the current revision.
