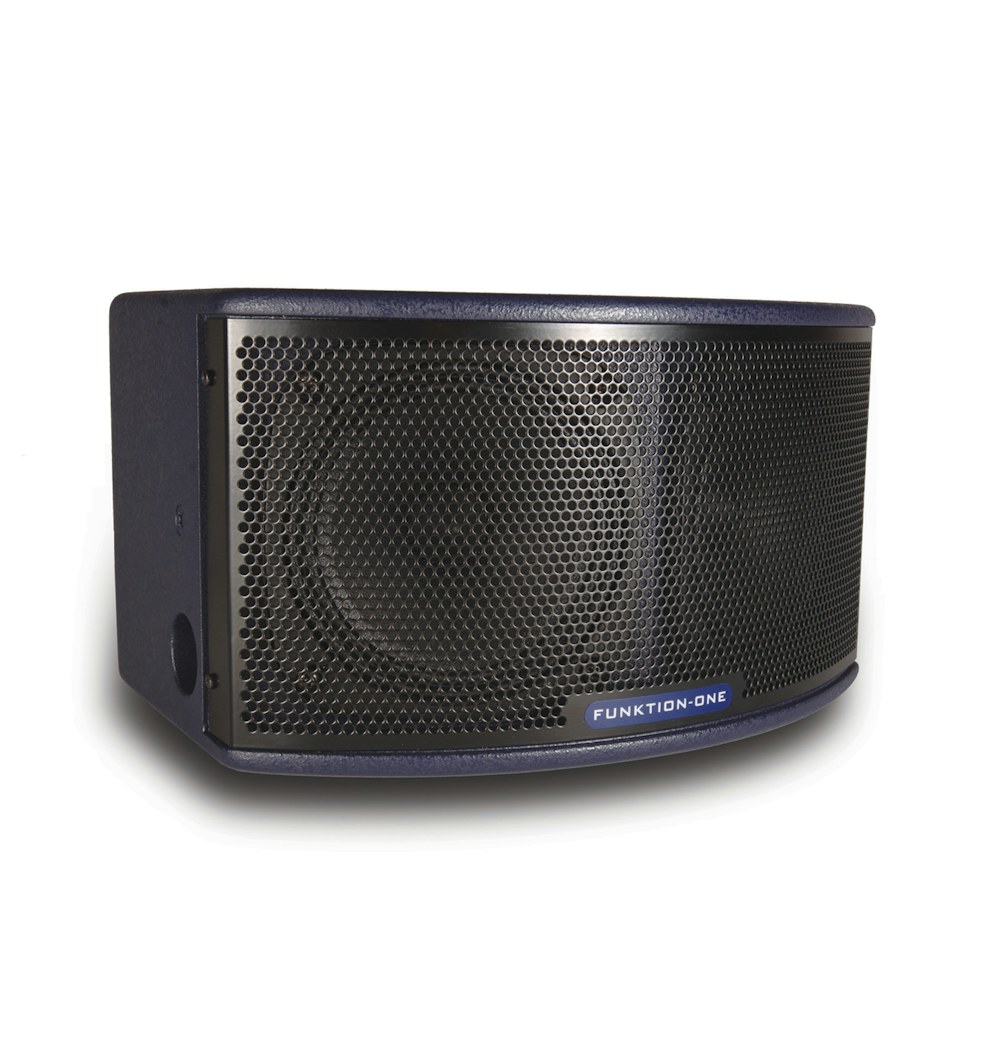

Funktion-One F55
Wide Dispersion and Excellent Imaging
F55 is an ultra compact loudspeaker for applications requiring wide dispersion near field coverage including bars, theatre front fill, under balcony and domestic use.
Download Archive
Extremely compact, wide dispersion loudspeaker
This high sensitivity enclosure delivers good vocal intelligibility with excellent clarity and imaging detail; attributes not usually present in compact loudspeakers. Dual 5” drivers manufactured to Funktion-One specification have been carefully optimised with the enclosure tuning for use without processing or system equalisation for natural simplicity and high fidelity. In common with the F81 and F101, out of operating band low frequency protection is incorporated. If additional bass reinforcement is required our smaller bass products including the MB112, MB210LP and BR115 enclosures make the perfect complement.
Performance
- Curved powder-coated mild steel grille
- Excellent Sensitivity
- M6 mounting and attachment points
- Wide and even dispersion
- Choice of speakON NL4 or Phoenix connectors
- No compression driver
- Ultra-compact enclosure
- 5” drivers optimised to Funktion-One specification
Specification
- Driver
- 2 x 5"
- Operating Band
- 160Hz - 13kHz
- Bandwidth (-3dB)
- 160Hz - 13kHz
- Sensitivity 1m
- 95dB at 2.8V
- Power
- 60W
- Nominal Impedance
- 8Ω
- Nominal Dispersion
- 90° x 45°
- Connectors
- 2 x Neutrik NL4 or Phoenix
- Weight
- 3.5kg (7.5lbs)
Documents
Documents are hosted by the manufacturer and always reflect the current revision.
