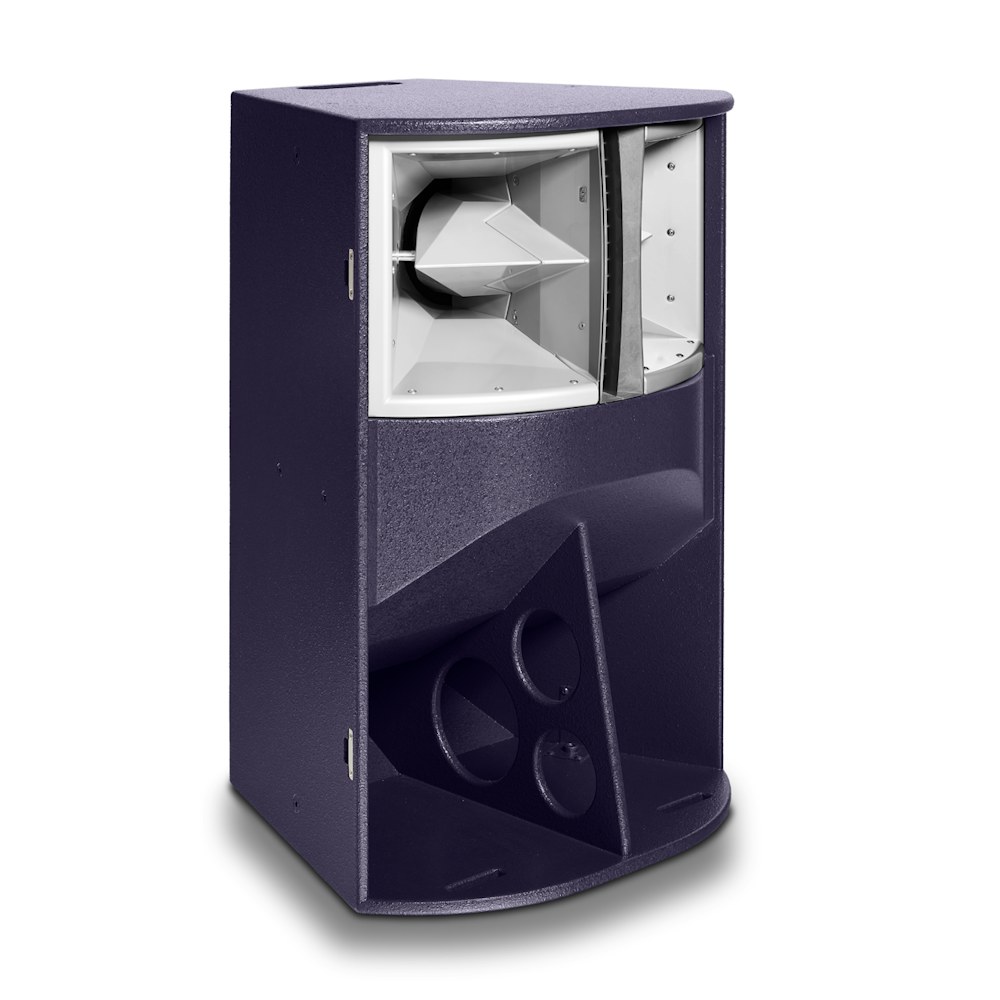

Funktion-One EVO X
Extraordinary Design and Performance
Evo X is a significant development of the full range, fully horn loaded cabinet concept. Utilising the latest Funktion-One waveguide technology, Evo X provides 90° dispersion and higher SPL.
Download Archive
State of the art Funktion-One sound quality
Evo X's advanced driver technology delivers market leading resolution and detail. It is an unbeatable choice for live venues, small club spaces and theatres. Capable of high SPL from a relatively compact enclosure, use as a pair for small live music events or as a four point small club system. Combine with the F Series or BR Range of bass loudspeakers for increased low frequency energy.
Performance
- Compact and lightweight (47kg)
- High efficiency/low energy consumption design
- Wide 90° horizontal dispersion
- Single loudspeaker solution
- Dedicated transport dolly (wheelboard)
- Funktion-One designed drivers
- New isophase diffraction HF waveguide technology
- Wide bandwidth Funktion-One midrange (280Hz - 5kHz)
- Full range, high SPL
Specification
- Driver
- 1"
- Operating Band
- 5kHz - 18kHz
- Bandwidth (-3dB)
- 60Hz - 18kHz
- Sensitivity 1m
- 109dB at 4V
- Power
- 100W
- Nominal Impedance
- 16Ω
- Nominal Dispersion
- 90° Horizontal x 15° Vertical
- Connectors
- 2 x Neutrik NL8
- Weight
- 47kg (103lbs) without wheelboard
Drawings
Documents
- 2D CAD (DWG)DWG
- 3D CAD (DWG)DWG
- Detailed DrawingPDF
- Ease DataGLL
- Grille Technical DrawingPDF
- Specification SheetPDF
- Squaring Bracket Technical DrawingPDF
- Technical DrawingPDF
- User GuidePDF
- Wheel Board Technical DrawingPDF
- Yoke Detailed DrawingPDF
- Yoke Technical DrawingPDF
Documents are hosted by the manufacturer and always reflect the current revision.
