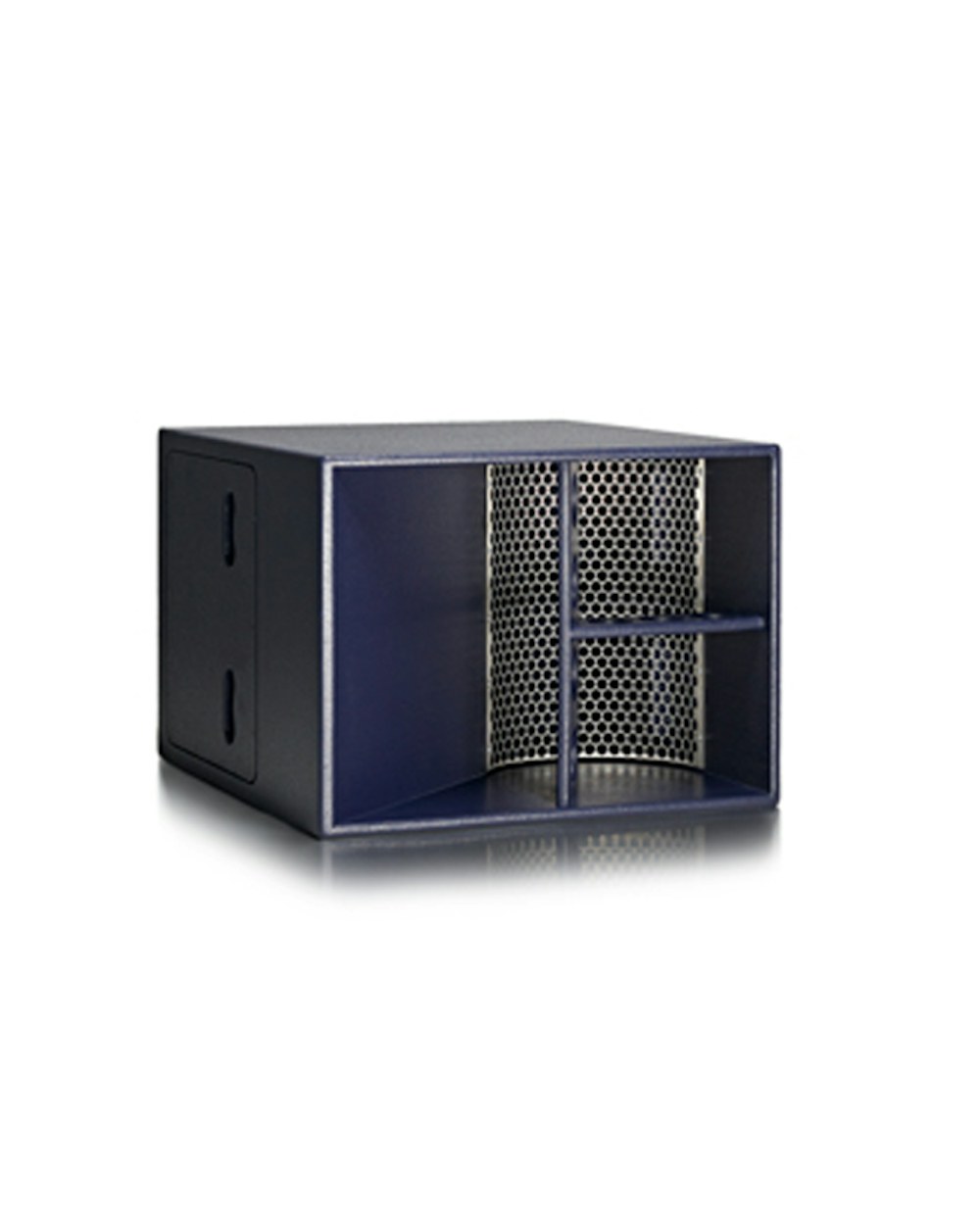

Funktion-One F118 MKII
Compact Horn-Loaded Enclosure
F118 MkII is the single 18” version of the F218 offering a more compact horn-loaded enclosure. In common with the F218, the MKII version brings refined loading, improved heat dissipation and an updated driver specification.
Download Archive
Well defined horn-loaded bass performance
It provides strong, well-defined, clean bass from a small and manageable package and can be supplied with an optional M20 threaded pole mount for use with a wide range of mid-high products including the F101, F1201, F88, R1 and R2SH. An installation version of the F118 MkII with flying points is also available, which can be used to provide bass extension to products such as the AX88.
Performance
- Proven loading design with latest tuning
- Integral handles
- Construction 18mm Birch Ply
- Optional throat grille, wheels & pole mount (M20 thread in lid or either side)
- New driver orientation provides improved cooling
Specification
- Driver
- 18"
- Operating Band
- 25Hz - 200Hz
- Bandwidth (-3dB)
- 50 - 200Hz
- Sensitivity 1m
- 102dB at 2.8V
- Power
- 450W
- Nominal Impedance
- 8Ω
- Nominal Dispersion
- Array dependent
- Connectors
- 2 x Neutrik NL4
- Weight
- 50kg (110lbs)
