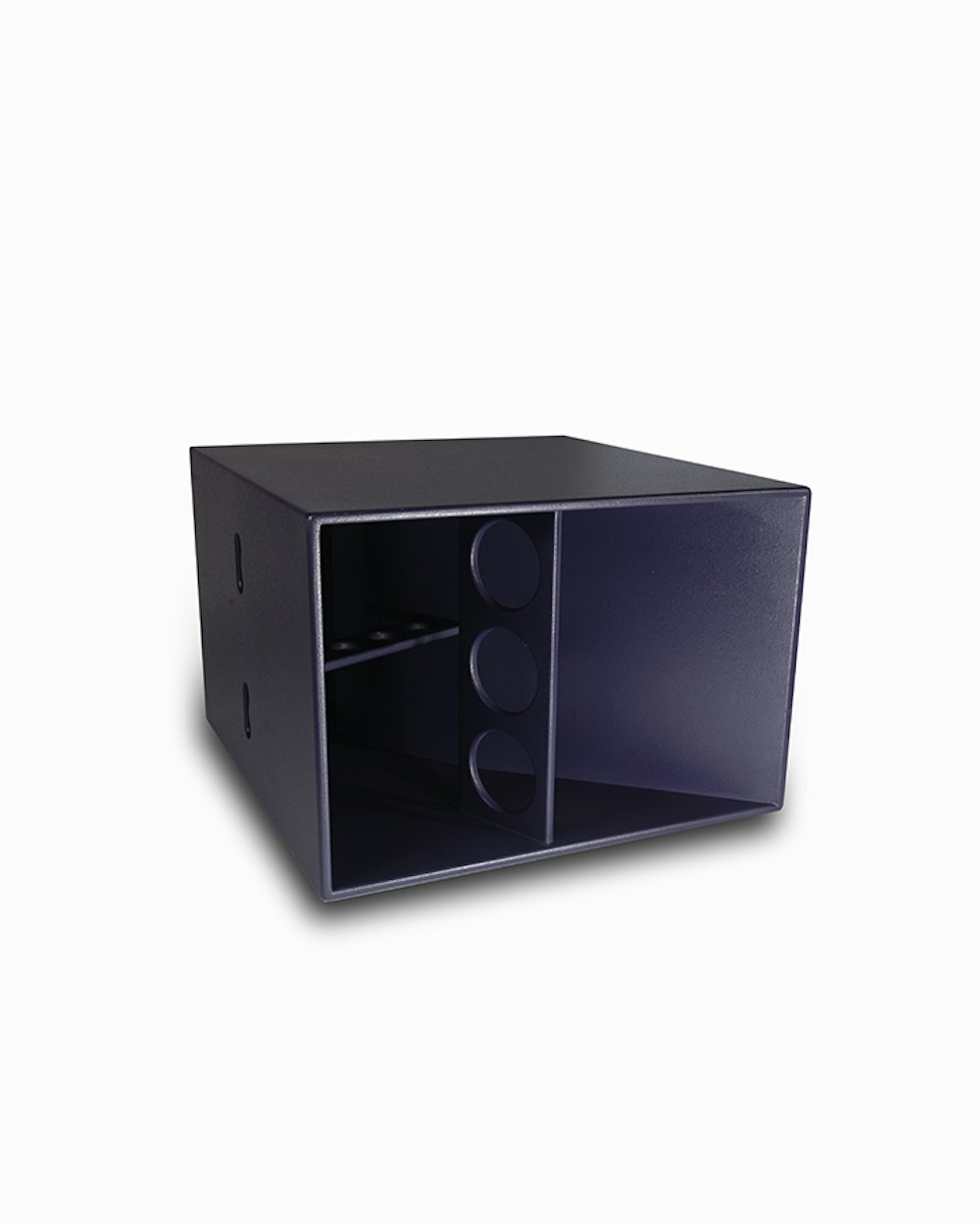

Funktion-One F121
Outstanding Mid-Size Bass Performance
F121 provides outstanding bass performance from a moderately sized enclosure making it the bass of choice for many diverse applications.
Download Archive
Overview
Similar in output power to an F218, this single 21” version of the F221 can be used with virtually all Funktion-One mid-high loudspeakers to great effect. It comprises a horn-loaded and very robust Funktion-One designed 21” driver, with 6” voicecoil and Neodymium magnet. Available with optional wheels, throat grille and pole mount.
Performance
- Funktion-One designed driver with Neodymium magnet
- Construction 18mm birch ply
- Integral handles
- Advanced Funktion-One loading
- New driver orientation provides improved cooling
- Optional throat grille, wheels and pole mount
- High output from moderately sized enclosure
Specification
- Driver
- 21"
- Operating Band
- 20Hz - 200Hz
- Bandwidth (-3dB)
- 40Hz - 250Hz
- Sensitivity 1m
- 101dB at 2.8V
- Power
- 750W
- Nominal Impedance
- 8Ω
- Nominal Dispersion
- Array dependent
- Connectors
- 2 x Neutrik NL4
- Weight
- 72kg (159lbs)
