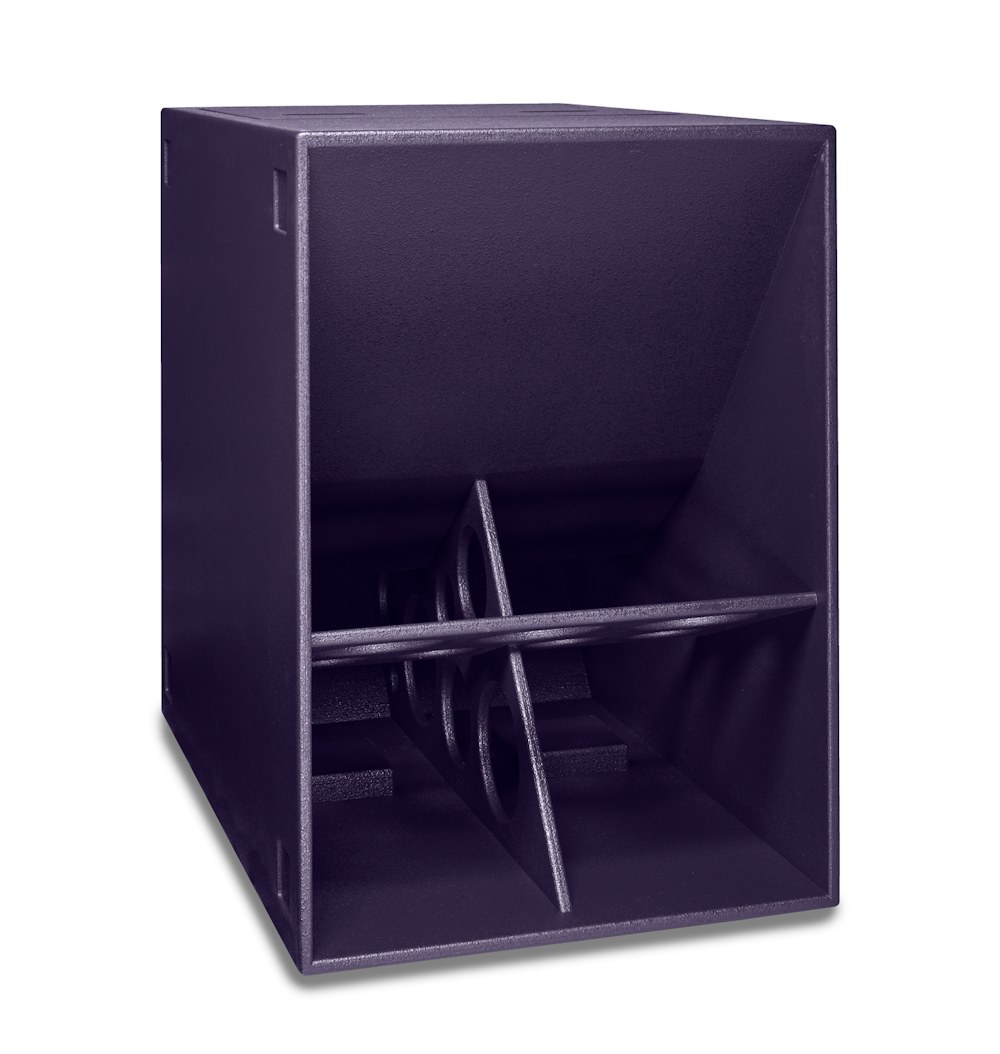

Funktion-One F124
Next Level Funktion-One Bass Performance
F124 features two voice coils and intense magnetic flux, which control the 24” cone with impressive accuracy.
Download Archive
Excellent bass extension from a single enclosure
This combination of mid-bass speed and impact with low-bass extension from a single enclosure makes the F124 the perfect bass partner for Evo systems and other Funktion-One mid-high products. The F124 delivers excellent transient response and extended depth to below 30Hz.
Performance
- New Funktion-One designed dual voice coil 24” driver
- FEA-optimised Neodymium magnet
- Low centre of mass for easy handling
- Location feet and recesses for stacking
- Optional wheels
- Integral handles
- Available in ultra durable black PU coating or classic Funktion-One paint finish
- Ground stack boards now available for Evo 6 and 7
- 18mm Birch Ply
Specification
- Driver
- 24" dual voice coil
- Operating Band
- 20Hz - 85Hz
- Bandwidth (-3dB)
- 35Hz - 160Hz
- Sensitivity 1m
- 104dB at 2V
- Power
- 1500W
- Nominal Impedance
- 2 x 8Ω
- Nominal Dispersion
- Array dependent
- Connectors
- 2 x Neutrik NL4
- Weight
- 103kg (227lbs)
Drawings
Documents
Documents are hosted by the manufacturer and always reflect the current revision.
